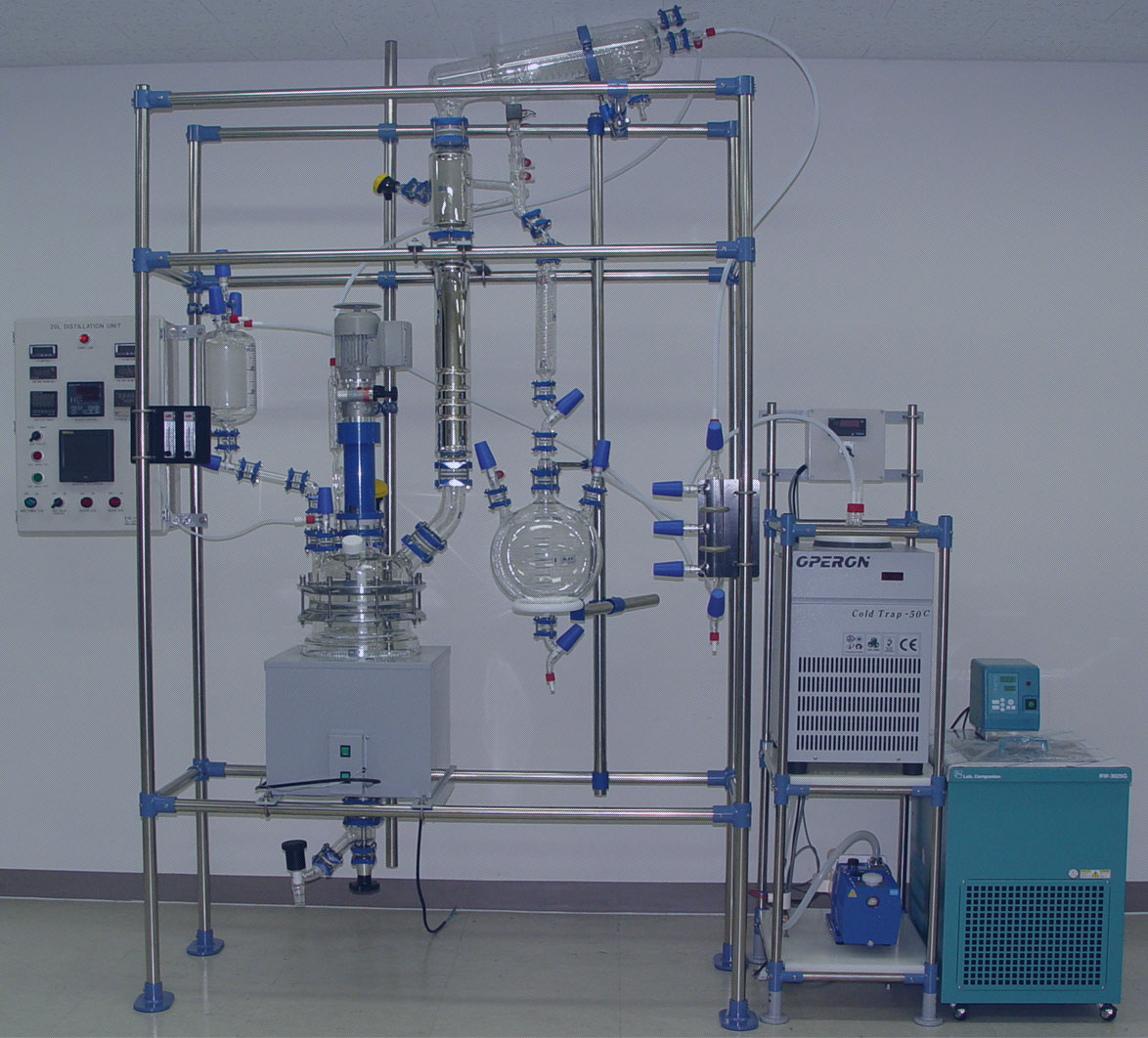

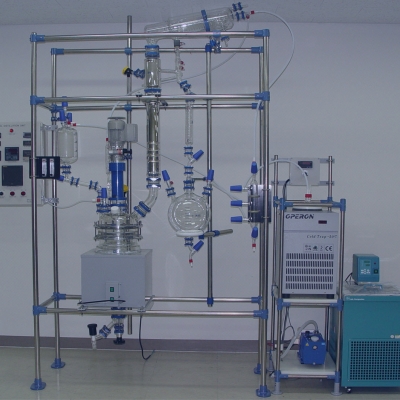

Distillation System
Distillation System 은 다양한 유기화합물 제품을 Kg 단위까지 생산할 수 있는 제품으로써, 다양한 화학 산업 분야 R&D에 박차를 가할 수 있습니다.
Reactor(Double/Triple)
- Materials : Borosilicate glass 3.3 PTFE/PFA/(glass-lining)
- Vessel Capacity : 1L~500L
- Vessel Type : Double Walt, Jacketed and Triple Wall
- Operrating Pressure : -1bar g(full vacuum) to +0.5bar g(+1bar)
- Operrating Temperature : -90℃ to 300℃
- Plate number is changeable according to kindes of packing.
Equipment
- Basic
| Products Type | KF10 | KF15 | KF20 |
|---|---|---|---|
| Capacity | 5L | 10L | 20L |
| Distilling Column | DN50 | DN50 | DN50 |
| Vapour Nozzle | DN50 | DN 50 | DN 50 |
| Cover | DN150 | DN 150 | DN 200 |
| Feed Vessel | 2L | 5L | 10L |
| Condenser | I.D 50mm | I.D 100mm | I.D 100mm |
| Product Condenser | I.D 25mm | I.D 25mm | I.D 25mm |
| Reflex Divider | Glass Pipe 150H | Glass Pipe 180H | Glass Pipe 180H |
| Receiver Vessel | 5L | 5L | 10L |
| Drain Valve | DN15 | DN25 | DN25 |
| Shaft | PTFE Φ20 | PTFE Φ20 | PTFE Φ25 |
| Impeller | Propeller (Φ20) | Propeller (Φ30) | Propeller (Φ100) |
| Seal | mechanical seal | mechanical seal | mechanical seal |
| Motor | 220V/DC.300w | 220V/DC.300w | 220V 380V/1Kw |
- Additional
| Oil bath | Vaccumm Pump | Cold trap / Vacuum vapor trap | Circulater |
|---|---|---|---|
|
■ Heater 2kw*3, SUS304 1/2" PT
■ 냉각코일(1/2" Pipe) SUS304 0.8T
■ 케이싱 SS41 4.5T
|
■ 220V/60Hz, Pressure : 5*10-4 |
■ Temp Range :최저 -120℃
■ -80℃/25m
■ 1℃ 단위 조절 가능
|
■ Working Temp Range : -25'C to 150'C
■ Bath volume : 20L
|
※모든 옵션은 고객의 요구에 따라 변경될 수 있습니다.
