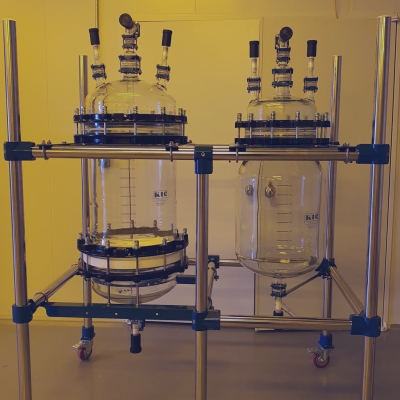

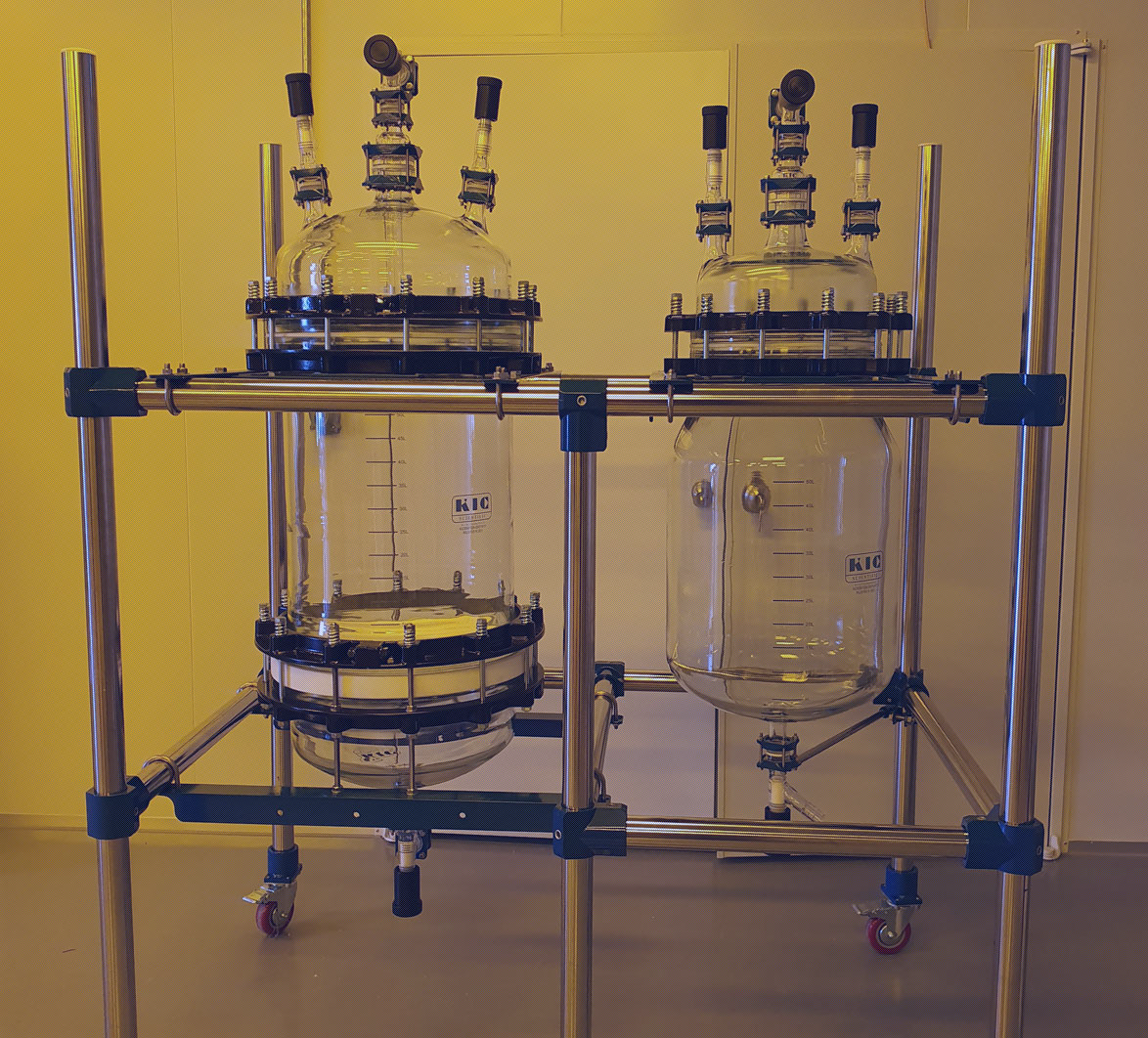

Filtration System
Filtration System 은 다양한 유기화합물 제품을 Kg 단위까지 생산할 수 있는 제품으로써, 다양한 화학 산업 분야 R&D에 박차를 가할 수 있습니다.
Bench Reactor
- Materials : Borosilicate glass 3.3 PTFE/PFA/(glass-lining)
- Vessel Capacity : 1L~500L
- Vessel Type : Double Walt, Jacket and Triple Wall
- Operrating Pressure : -1bar g(full vacuum) to +0.5bar g(+1bar)
- Operrating Temperature : -20℃ to +300℃
- Plate number is changeable according to kindes of packing.
Equipment
- Basic
| Products Type | KF20 | KF50 | KF100 |
|---|---|---|---|
| Capacity | 20L | 50L | 100L |
| Vapour Nozzle | DN 25 | DN 50 | DN 80 |
| Cover | DN 150 | DN 300 | DN 300 |
| Feed Vessel | 10L | 20L | 50L |
| Condenser | 0.35 | 0.50 | 1.50 |
| Product Condenser | - | 0.50 | 1.50 |
| Reflex Divider | DN 50 | DN 60 | DN 100 |
| Receiver Vessel | 5L | 10L | 20L |
| Drain Valve | DN25 | DN50 | DN50 |
- Additional
| Oil bath | Vaccumm Pump | Cold trap / Vacuum vapor trap | Circulater |
|---|---|---|---|
|
■ Heater 2kw*3, SUS304 1/2" PT
■ 냉각코일(1/2" Pipe) SUS304 0.8T
■ 케이싱 SS41 4.5T
|
■ 220V/60Hz, Pressure : 5*10-4 |
■ Temp Range :최저 -120℃
■ -80℃/25m
■ 1℃ 단위 조절 가능
|
■ Working Temp Range : -25'C to 150'C
■ Bath volume : 20L
|
※모든 옵션은 고객의 요구에 따라 변경 설계될 수 있습니다.
